Technical Specifications Of Imitation Wood Grain Heat Shrinkable Sleeve
|

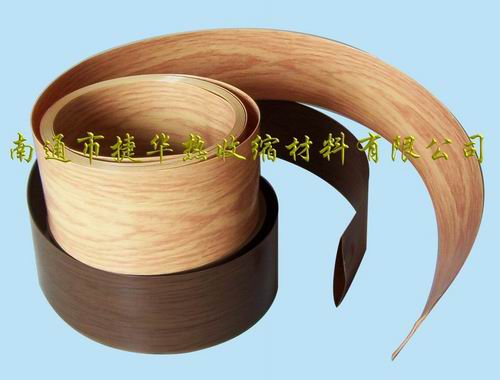

① Product Description: imitation wood heat shrink tubing is environmentally friendly PVC heat shrinkable casing as the medium, through special processing, so that the surface covered with wood grain after the formation of realistic natural imitation wood effect.
② Scope: Product specifications Φ10 ~ Φ80, widely used in curtain rods, shower rods, furniture within the pole, hanging rods and other needs of the effect of iron pipe outsourcing plastic.
③ Horizontal shrinkage ratio: 2: 1
④ Use equipment: far infrared thermostat type automatic heat shrink machine, shrink temperature 110 ℃ ~ 150 ℃ (specific shrink temperature depending on the equipment, the use of circumstances).
⑤ Product Category: ordinary light type; ordinary matte type; enhanced light type; enhanced matte type.
|
 |
|
Differences: matte products: from the appearance of feeling, more soft than the bright type of product, closer to nature.
Enhanced products: added anti-ultraviolet agent, cold agent, so that anti-aging products, cold, anti-sun performance than ordinary products increased significantly
⑥ Product Specifications:
|
|
Number |
Standard |
Folding width(mm) |
Single wall thickness(mm) |
Applicable iron pipe outside diameter（mm） |
Long conversion
1000 m ≈ kg
|
|
1 |
Φ10 |
16.8+0.5 |
0.10±0.02 |
Φ7.5～Φ8.7 |
4.8 |
|
2 |
Φ11 |
18.0+1.0 |
Φ8.8～Φ9.7 |
5.2 |
|
3 |
Φ12 |
20.0+1.0 |
Φ9.8～Φ10.7 |
5.8 |
|
4 |
Φ13 |
21.5+1.0 |
Φ10.8～Φ11.7 |
6.2 |
|
5 |
Φ14 |
23.5+1.0 |
Φ11.8～Φ12.7 |
6.8 |
|
6 |
Φ15 |
24.5+1.0 |
Φ12.8～Φ13.7 |
7.1 |
|
7 |
Φ16 |
27.0+0.5 |
Φ13.8～Φ14.7 |
7.5 |
|
8 |
Φ17 |
28.0+1.0 |
Φ14.8～Φ15.5 |
7.9 |
|
9 |
Φ18 |
29.0+1.0 |
Φ15.6～Φ16.5 |
8.2 |
|
10 |
Φ19 |
31.0+0.6 |
Φ16.6～Φ17.5 |
8.7 |
|
11 |
Φ20 |
32.5+1.0 |
0.12±0.02 |
Φ17.6～Φ18.5 |
11.1 |
|
12 |
Φ21 |
34.0+1.0 |
Φ18.6～Φ19.5 |
11.6 |
|
13 |
Φ22 |
35.5+1.0 |
Φ19.6～Φ20.0 |
12.2 |
|
14 |
Φ23 |
36.5+1.0 |
Φ20.6～Φ21.0 |
12.8 |
|
15 |
Φ24 |
39.0+1.0 |
Φ21.6～Φ22.0 |
13.2 |
|
16 |
Φ25 |
41.0+1.5 |
Φ22.6～Φ23.0 |
14.4 |
|
17 |
Φ26 |
43.5+1.5 |
Φ23.1～Φ24.0 |
14.8 |
|
18 |
Φ27 |
45.0+1.5 |
Φ24.1～Φ25.0 |
15.2 |
|
19 |
Φ28 |
46.5+1.5 |
0.15±0.025
|
Φ25.1～Φ26.0 |
15.8 |
|
20 |
Φ29 |
48.5+1.5 |
Φ26.1～Φ27.0 |
20.7 |
|
21 |
Φ30 |
50.0+1.5 |
Φ27.1～Φ27.5 |
21.3 |
|
22 |
Φ33 |
52.0+1.5 |
27.6Φ～Φ30.5 |
22.2 |
|
23 |
Φ34 |
56.5+1.5 |
Φ30.6～Φ31.5 |
24.2 |
|
24 |
Φ35 |
58.0+1.5 |
Φ31.6～Φ32.5 |
24.8 |
|
25 |
Φ36 |
59.5+1.5 |
Φ32.6～Φ33.5 |
25.4 |
|
26 |
Φ38 |
63.5+1.5 |
Φ33.6～Φ35.0 |
27.1 |
|
27 |
Φ40 |
65.0+2.0 |
Φ35.1～Φ37.0 |
27.7 |
|
Note:
1.This table applies to the iron pipe diameter for a single iron pipe length of 1.5 meters below the scope of application, when a single iron pipe length is long, the need to properly use the size of the size of the heat shrink tubing, the specific Size depends on usage.
2.Long conversion for the reference value, with the product size changes in positive and negative tolerances and product formula changes, long conversion will fluctuate.
3.Specifications can be developed according to customer needs.
|
|
